Ruben Racing Cams®

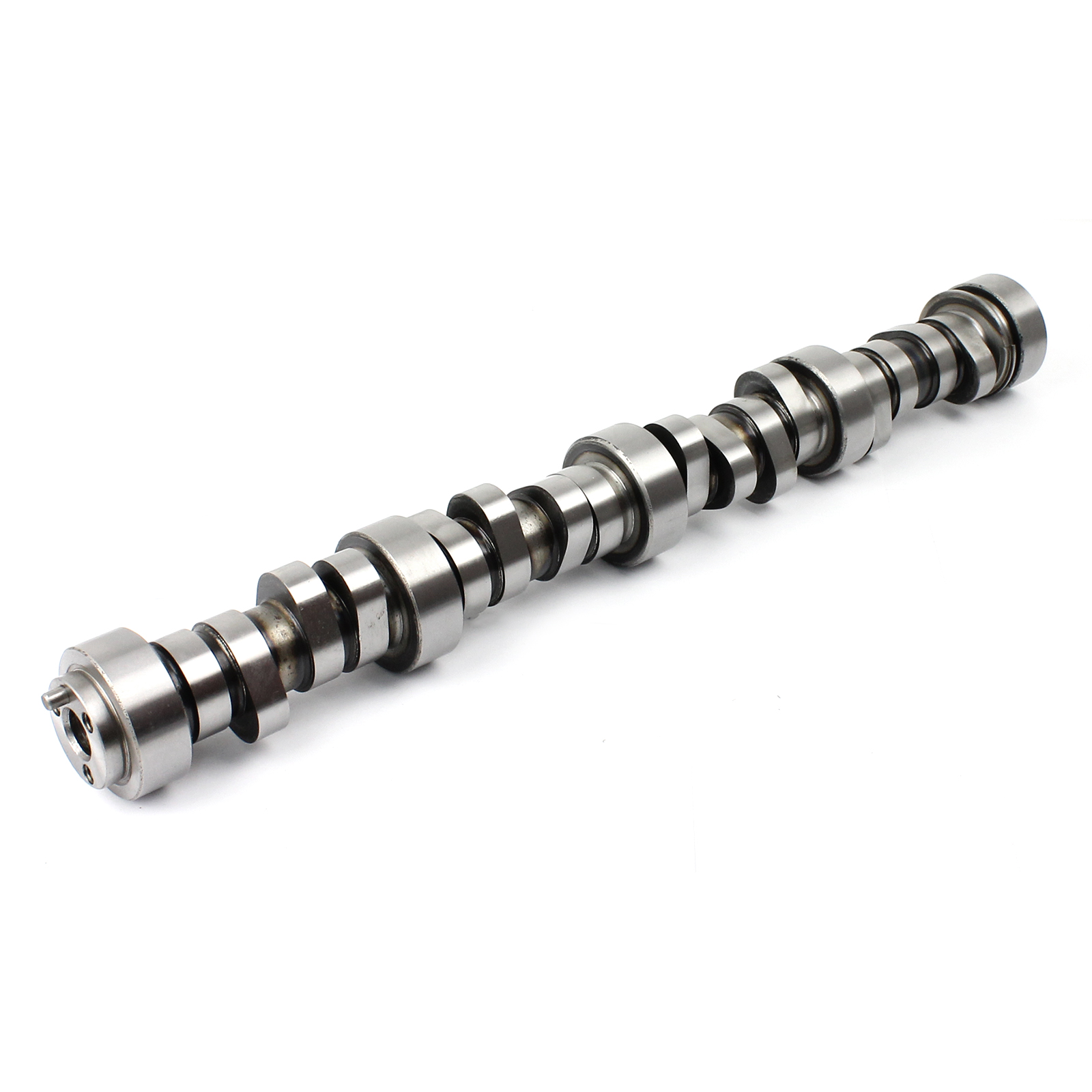

GM LS Hydraulic Roller Camshaft 218 int. 224 Exh. Duration @.050 114 Lobe Center
Product Information
Overview
Ruben Racing Cams hydraulic roller camshafts are offered in a wide variety of profiles, from mild to wild. These camshafts are precision-ground from race-quality cores, in-house, on dedicated cam-grinding machines. Each camshaft is manufactured to the highest quality standards.
Specs
| Brand: | Ruben Racing Cams |
| Part Number: | RUB-LS1-H218V-114 REG |
| Part Type: | Camshafts |
| Cam Style: | Hydraulic roller tappet |
| Basic Operating RPM Range: | 2,500-6,500 |
| Intake Duration at 050 inch Lift: | 218 |
| Exhaust Duration at 050 inch Lift: | 224 |
| Duration at 050 inch Lift: | 218 int./224 exh. |
| Advertised Intake Duration: | 286 |
| Advertised Exhaust Duration: | 290 |
| Advertised Duration: | 286 int./290 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio: | 0.527 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio: | 0.534 in. |
| Valve Lift with Factory Rocker Arm Ratio: | 0.527 int./0.534 exh. |
| Lobe Separation (degrees): | 114 |
| Computer-Controlled Compatible: | Yes |
| Valve Springs Required: | Yes |
| Quantity: | Sold individually. |
