Speedmaster®

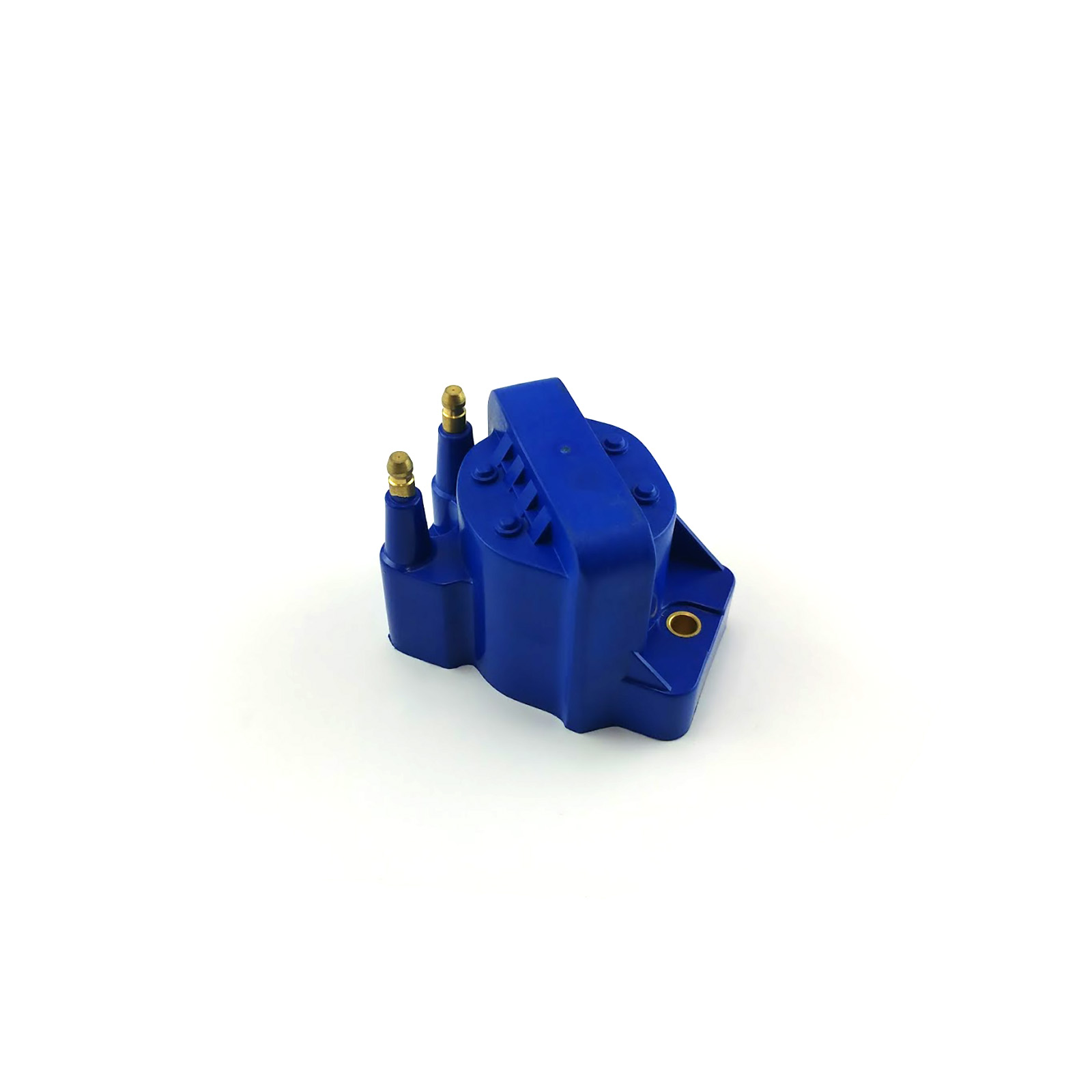

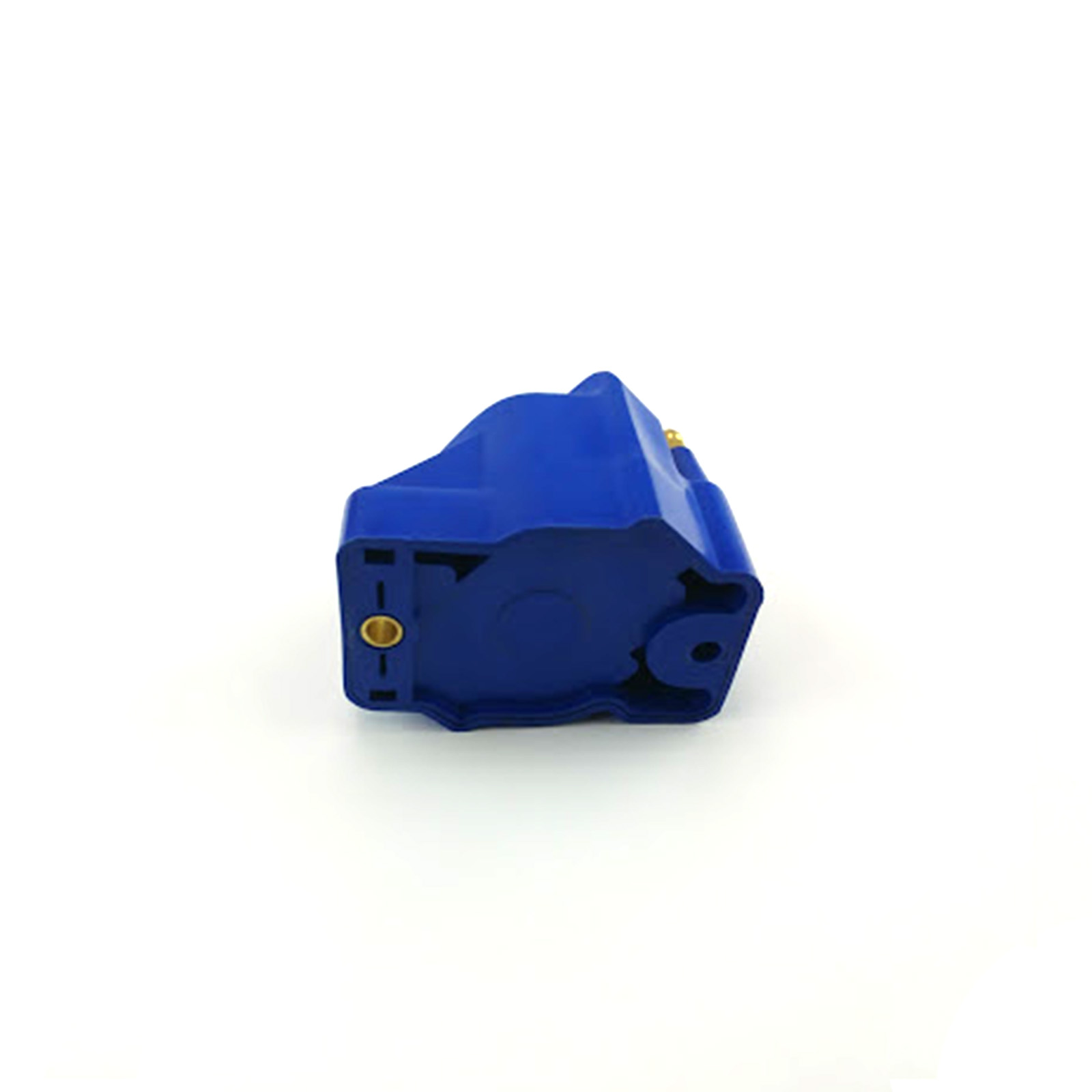

Late Model 12V High Output External Male DIS - 2 Tower Ignition Coil
Promo
Product Information
Overview
When it comes to late model performance components nothing beats the simplicity of bolt on direct connection. This new offering from PCE, bolt in coils are designed with improved materials over stock and windings to produce a stronger input.
Specs
| Brand: | Speedmaster |
| Part Number: | PCE382.1003 |
| Part Type: | Ignition Coil |
| Coil Wire Attachment: | Male/HEI |
| Coil Style: | E-core |
| Primary Resistance: | 0.35 ohms |
| Coil Internal Construction: | Epoxy |
| Coil Color: | Blue |
| Maximum Voltage: | 40,000 V |
| Turns Ratio: | 80:1 |
| Secondary Resistance: | 7.8K ohms |
| Inductance: | 4.2 mH |
| Peak Current: | 300 mA |
| Spark Duration: | 200 uS |
| Mounting Bracket Included: | Yes |
| Coil Wire Included: | No |
| Ballast Resistor Included: | N/A |
| Coil Shape: | Stock |
| Quantity: | Sold individually. |
Warranty Information
12-Month Limited Worldwide Warranty
Prop 65 Warning
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
